HDRF-1770-I

HDRF-1770-I RF Shield Test Box

Want to customize your shield box? Build Your Shieldbox

HDRF-1770-I

HDRF-1770-I RF Shield Test Box

Our facility is designed to ensure superior quality of research, high-tech production techniques, secured storage and advanced packagingOur facility is designed to ensure superior quality of research, high-tech production techniques, secured storage and advanced packaging...

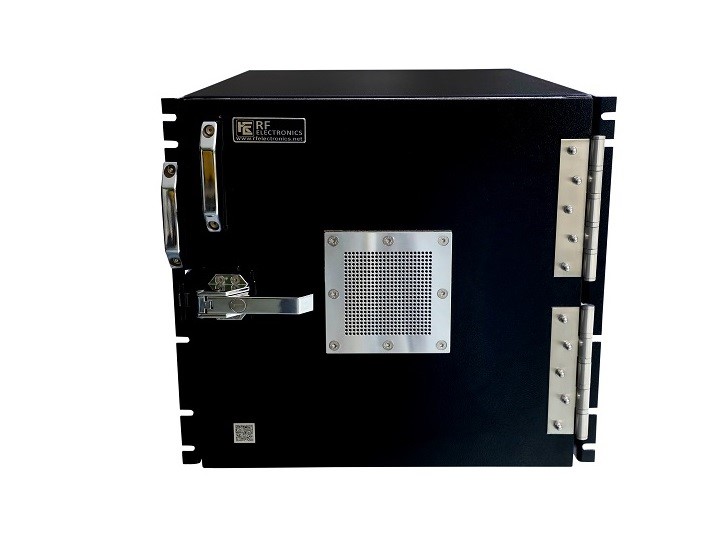

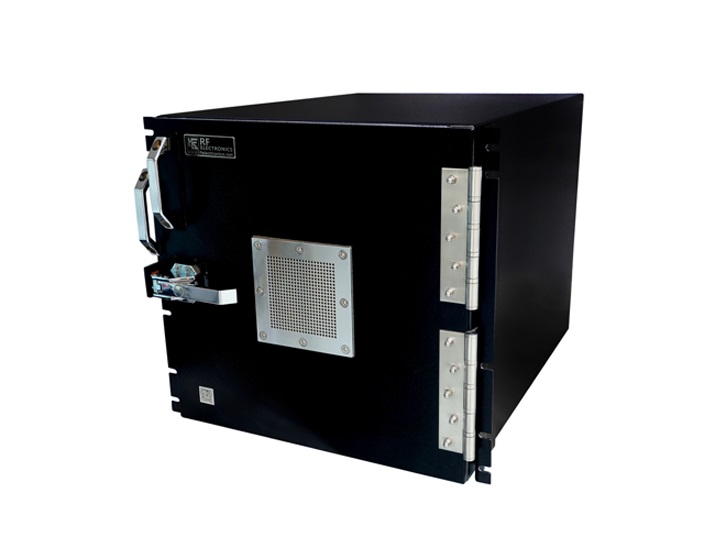

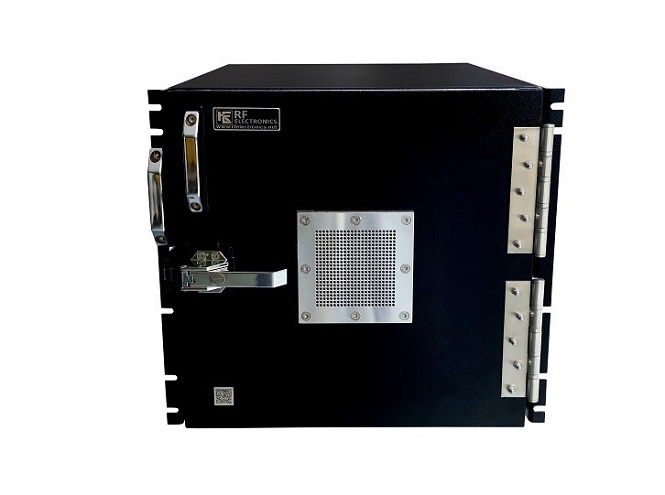

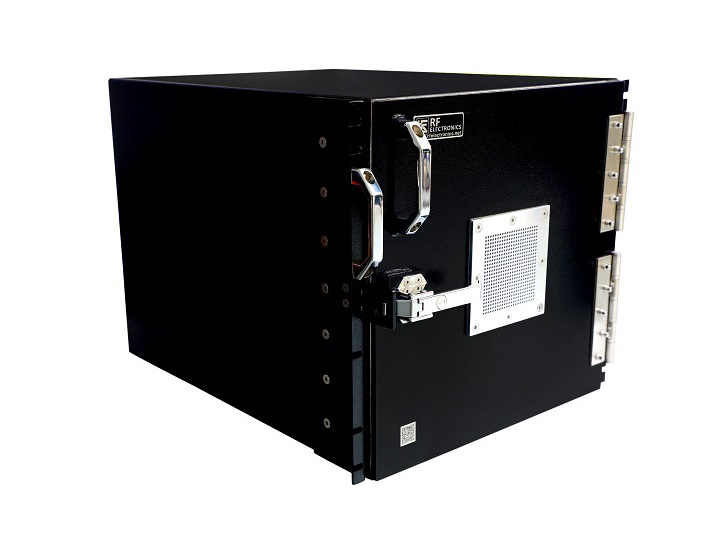

19" Rack Mount RF Shield Box.
Designed and Developed for WLAN , Wireless device testing.
Ideal for 802.11a, b, g, n, ac, ax, be
Bluetooth, RFID, 3G, LTE , 5G FR1 Device testing

Weight

Net Weight: 22.20 KG, Gross Weight: 30.92 KG

Packaging Dimensions

Width: 23.00 Inch, Height: 20.00 Inch, Depth: 30.00 Inch

Add Product to Inquiry

Industries

Industrial Automation

RF Isolation

130 dB @ 20 MHz ~ 1 GHz
120 dB @ 3 GHz
120 dB @ 5 GHz
115 dB @ 6 GHz
110 dB @ 7 GHz
110 dB @ 8 GHz
00 db @ 12 GHz

V/S

Features of HDRF-1770-I

Designed and Developed for WLAN , Wireless device testing
Ideal for 802.11a, b, g, n, ac, ax, be
Bluetooth, RFID, 3G, 5G FR1 Device testing

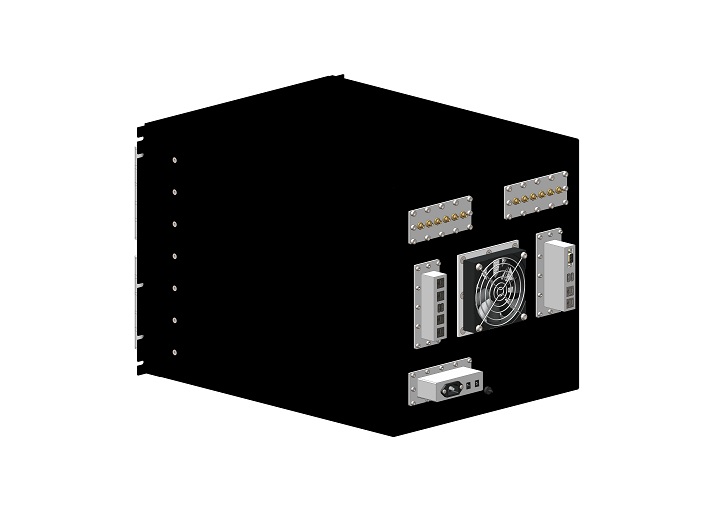

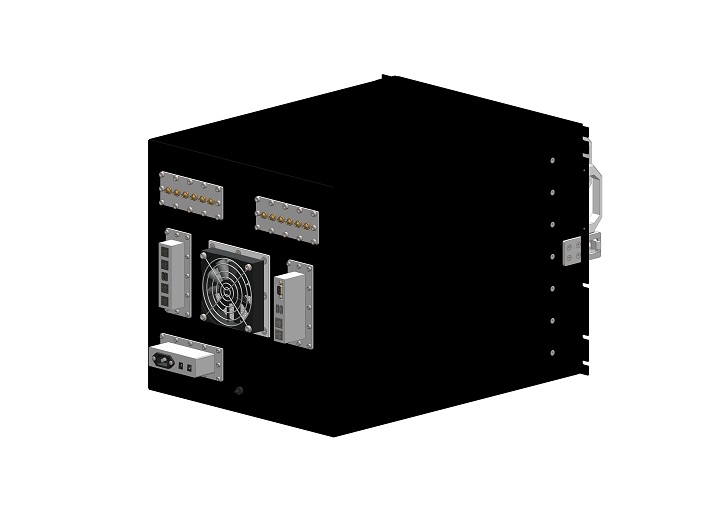

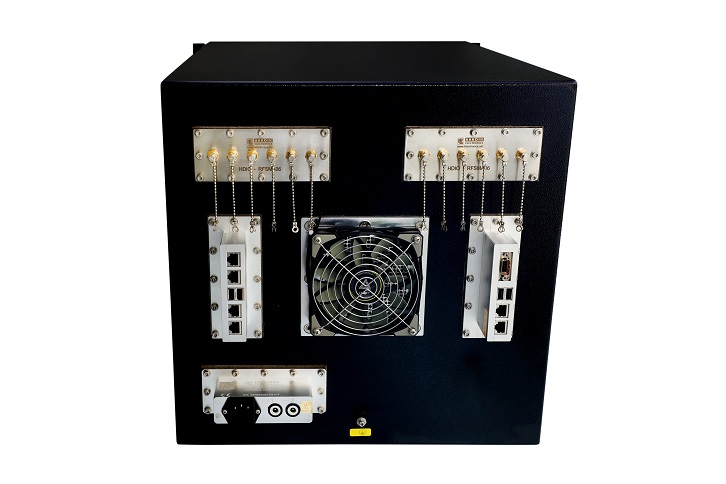

Wide range of I/O connector options.

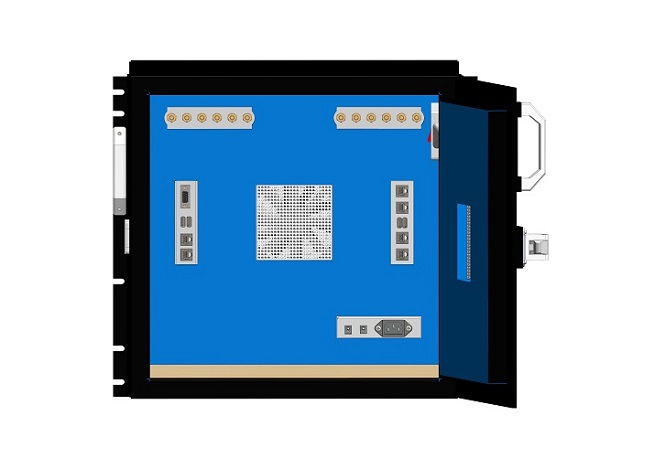

Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Affordable shielding solution without compromising on quality or performance
Compact and portable shield box for easy transportation and setup in various environments
Rugged construction for long life
Standard 19" Rack Mount Design ideal for Rack Based Vertical test platforms.
